Monolith USB 52 98 3c 99 a3 1x4

Layout
  SM3257 1144_27 Xor b36e_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x600000
    Page   0x4000
  Join by Dump
    Parts  4
  Cut Bits
    Field  Bank Number
    Mask   0xc0
Assembler
  Block Number
    Block Size      0xc00000
    Banks           0..45 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  By JeremyB..
  Power Adapter doesn't recognize this chip.
  Cover reader Vcc pin and apply external 2.54v
  power for the correct ID otherwise it IDs as
  98 3a 98 a3

Monolith USB 53 ad 3a 18 03 1x1

Layout
  PS2251-V 1158_1150 Xor 0561_384_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x600000
    Page   0x4000
  Block Renum
    Block  0xc00000
    Page   0x4000
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x593
  Actions
    Scan
Comments
  Serg for forum 11155

Monolith USB 54 ad 3a 18 a3 1x1

Layout
  AU6998 1138 Xor 6771_256 aECC
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  2
  Block Pair
    Block  0x408000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x810000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 11162

Monolith USB 55 ec 1a a8 de 1x2

Layout
  SM3257 1148_27 Xor b36e_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Block Pair
    Block  0x400000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
  Cut Bits
    Field  Bank Number
    Mask   0xc0
Assembler
  Block Number
    Block Size      0x1000000
    Banks           0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11172

Monolith USB 56 98 3a a8 92 1x4

Layout
  PS2251 1137_1133 Xor 0561_86
Mix
  Input
    Order  0/3/2/1
  Block Pair
    Block  0x204000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
  Join by Dump
    Parts  2
  Cross Bank
    Block  0x810000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x810000
    Bank Space   0x800
    Banks        0..3 / 0x000 / 0x744
  Actions
    Scan
Comments
  Dump order is other.
  Bank Space gives error due to 0x2098 block count.
  90% Recovered. Filter out Erased Blocks

Monolith USB 57 ad de 14 a7 1x1

Layout
  SM3259 1126_31 Xor 17fe_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size      0x400000

    Banks           00 / 0x000 / 0x0ff
                    01 / 0x000 / 0x0ff
                    02 / 0x000 / 0x0ff
                    03 / 0x000 / 0x0f1
  Actions
    Scan
Comments
  By Bolo and Serg for forum 11218
  Model works perfect, but to make this case you need to do some preparation:
  1) Make ECC Fix
  2) Split dump on two parts:
   - wtih contains odd blocks 1,3,5,7,9......
   - wtih contains even blocks 0,2,4,6,8......
     Block Size = 0x400000 / 0x400 = 256 * 18048 = 0x468000
  3) Process each dump with this model and Save Image
  4) Join saved images into one file (first odd blocks file, then even blocks fi
le)
  5) MBR was missing. Find FAT32 boot sector. Copy its address to MBR
  6) Perfect recovery

Monolith USB 58 2c d7 94 3e 2x1

Layout
  SM3254 540_538
Mix
  Input
    Order  0/1
  Join by Byte
    Parts  2
    Data   false
  Block Pair
    Block  0x100000
    Page   0x2000
Assembler
  Block Number
    Block Size      0x200000
    Bank Space      0x400
    Image Cut

    Banks           00 / 0x000 / 0x3b7
                    01 / 0x000 / 0x3bc
                    02 / 0x000 / 0x3bd
                    03 / 0x000 / 0x3bd
  Actions
    Scan
Comments
  by DATASAVE

Monolith USB 59 98 3a 98 a3 2x1

Layout
  AU6998 1138 Xor 6771_384_128 aECC
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  384
    Group  1
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 11209
  Use "Auto 2 Same Pairs" to remove BB

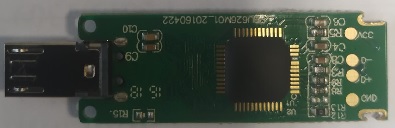

  Marking on pcb: PBU626M01 20160422

Monolith USB 60 ad 5e 28 22 1x1

Layout
  SM3259_41 1144_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  1728
    Group  1
Assembler
  Block Number
    Block Size   0xd80000
    Banks
      00 / 0x000 / 0x0ff
      01 / 0x000 / 0x0ff
      02 / 0x000 / 0x0ff
      03 / 0x000 / 0x0ff
      04 / 0x000 / 0x050
  Actions
    Scan
Comments
  Serg for forum 11189

  To make this case need make Split by Block on 4 dumps
  with Block Size 0xd80000 = 0xfa9800 in raw dump

  Dump_0 had 1148 layout
  Dump_1 had 1144 layout and Software bad bytes
  Dump_2 had 1148 layout
  Dump_3 had 1148 layout

  Make images for each dump

  Make Join by Page 0x2000
  Image_0 + Image_1 = Image_01
  Image_2 + Image_3 = Image_23

  Make Join by Dump
  Image_01 + Image_23 = Final_Image

  Make Check Dirs
  If see shifts in second part of image adjust bank sizes

  =============================
  Split by Block can be done in FE_v5
  With Dump Search / Raw

  (1)
  Block Size  0x3ea6000
  Sector      0xfa9800/0x2EFC800

  (2)
  Block Size  0x3ea6000
  Sector      0/0xfa9800/0xfa9800/0x1F53000

  (3)
  Block Size  0x3ea6000
  Sector      0/0x1F53000/0xfa9800/0xfa9800

  (4)
  Block Size  0x3ea6000
  Sector      0/0x2EFC800/0xfa9800

Monolith USB 61 98 3a a8 92 1x1

Layout
  SSS6697 1140 Xor c20d_256
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Block Cut
    Block  0/0x8000/0x808000
Assembler
  Virtual Translator
    Block Size  0x808000
Comments
  By JeremyB
  No SA Markers
  Find a few blocks with Auto Slow then run Auto Fast

Monolith USB 62 98 de 98 92 1x1

Layout
  SM3257 1130 Xor b36e_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size      0x408000
    Banks           0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Set Blocks in NR to 0x1058
  Some Erased Blocks but otherwise a good recovery (JeremyB)

Monolith USB 63 45 4c a8 92 1x1

Layout
  SM3259_41 1128_31 Xor 17fe_258 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  1
Assembler
  Block Number
    Block Size   0x204000
    Banks        0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11261
  Need make split by Block of dump on 4 parts
  Block Size = 0x244800

  Can do it in FE core_v5 / Dump_Search / Raw

  (1)
  Block  0x912000
  Sector 0x244800/0x6CD800

  (2)
  Block  0x912000
  Sector 0/0x244800/0x244800/0x489000

  (3)
  Block  0x912000
  Sector 0/0x489000/0x244800/0x244800

  (4)
  Block  0x912000
  Sector 0/0x6CD800/0x244800

  After it need make image for each dump
  For each dump need use different layouts
  for this case i use:
  (1) - SM3259_41 1128_31 Xor 17fe_258 bb
  (2) - SM3259_41 1126_31 Xor 17fe_258 bb
  (3) - SM3259_41 1142_31 Xor 17fe_258 bb
  (4) - SM3259_41 1142_31 Xor 17fe_258 bb

  After it make Join by Page 0x2000 between 4 images

Monolith USB 63 45 4c a8 92 1x1

Layout
  SM3259_41 1128_31 Xor 17fe_258 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  1
Assembler
  Block Number
    Block Size   0x204000
    Banks        0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11261
  Need make split by Block of dump on 4 parts
  Block Size = 0x244800

  Can do it in FE core_v5 / Dump_Search / Raw

  (1)
  Block  0x912000
  Sector 0x244800/0x6CD800

  (2)
  Block  0x912000
  Sector 0/0x244800/0x244800/0x489000

  (3)
  Block  0x912000
  Sector 0/0x489000/0x244800/0x244800

  (4)
  Block  0x912000
  Sector 0/0x6CD800/0x244800

  After it need make image for each dump
  For each dump need use different layouts
  for this case i use:
  (1) - SM3259_41 1128_31 Xor 17fe_258 bb
  (2) - SM3259_41 1126_31 Xor 17fe_258 bb
  (3) - SM3259_41 1142_31 Xor 17fe_258 bb
  (4) - SM3259_41 1142_31 Xor 17fe_258 bb

  After it make Join by Page 0x2000 between 4 images

Monolith USB 65 89 68 04 46 2x1

Layout
  UT165 536
Mix
  Input
    Order  0/1
  Join by Byte
    Parts  2
    Data   false
  Block Pair
    Block  0x200000
    Page   0x2000
  Divide
    Field  Block Number
    Value  0x2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x400
    Image Cut    0xf7000
  Actions
    Scan
    Find Bank Size
Comments
  By JeremyB - FAB8GBHSMI3IA2B
  Chip initially ID as 89 00 01 01
  After manually reading chip ID properly.
  Perfect Recovery

Monolith USB 66 ec 1c 98 3f 1x1

Layout
  SM3280 32_1146_2_32 LE2 LE2 Xor 17fe_768 SA
Mix
  Input
    Order  0
Assembler
  Sector Number Slow
    Sector Size  0x1000
Comments
  Serg for forum 11349

Monolith USB 67 ad 5a 14 f3 1x1

Layout
  DM 1102 Xor e88a_256
Mix
  Input
    Order  0
Assembler
  Raw
    Block Size  0x20000
Comments
  Serg for forum 11330
  Only Raw Recovery possible
  There is no mix

Monolith USB 68 ec 1e 98 bf 1x1

Layout
  SM3280 32_1146_2_32 LE2 LE2 Xor 17fe_1104 SA
Mix
  Input
    Order  0
  Block Pair
    Block  0x1140000
    Page   0x4000
Assembler
  Sector Number Slow
    Sector Size  0x1000
Comments
  Serg for forum 11406

  02.09.2023 - block pair added

Monolith USB 69 45 3a 94 93 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x400000
    Page   0x4000
  Cross Bank
    Block  0x800000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7fc
  Actions
    Scan
Comments
  By JeremyB

Monolith USB 70 ad 3a 18 03 1x1

Layout
  CBM2098 1144 Xor c32e_64
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  384
    Group  1
  Block Pair
    Block  0x600000
    Page   0x4000
Assembler
  Translator Table
    Block Size   0xc00000
    Bank Space   0x80
    Banks Table  0x0
    Image Cut    0x2bc000
Comments
  By JeremyB
  16GB Flash Drive rebadged as 1TB
  Software Bad Bytes - Auto FF
  Find the first few blocks in Virtual Translator and search for
  BN stored as 32bit little endian numbers to find Translator table
  Last page entry contains current values
  Translator Table stored in SLC Mode (0xA2) (Block Pair)
  Due to NAND chip bit errors 50% recovered

Monolith USB 71 ec 1a a8 de 1x2

Layout
  SM3257 1130 Xor b36e_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Block Pair
    Block  0x400000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Virtual Translator
    Block Size  0x1000000
Comments
  Serg for forum 11573
  VT because SA was zeros

Monolith USB 72 45 3c 98 b3 1x1

Layout
  SM3259_41 1144_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0xc00000
    Banks        0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Conflicts Auto
  By DATASAVE

Monolith USB 73 89 68 04 46 2x1

Layout
  SM3254 540_538
Mix
  Input
    Order  0/1
  Join by Byte
    Parts  2
    Data   false
  Cross Bank
    Block  0x200000
    Bank   0x400
Assembler
  Block Number
    Block Size      0x200000
    Bank Space      0x400
    // Sector Updates
    Update Size     0x2000
    Update Enable   true
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 11615

Monolith USB 74 45 de 94 93 1x1

Layout
  SM2685 1100_27 Xor b36e_64
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  256
    Group  2
  Block Pair
    Block  0x400000
    Page   0x4000
Assembler
  Block Number
    Block Size      0x800000
    Banks           00..03 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  by Arvika
  Need cut software bb

Monolith USB 75 ec de 98 ce 1x2

Layout
  SM3257 1144_27 Xor 101d_192
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size      0x600000
    Banks           0..10 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  by Bolo

Monolith USB 76 2c 68 04 46 1x1

Layout
  SM3254 1066 v1
Mix
  Input
    Order  0
  Block Pair
    Block  0x100000
    Page   0x1000
Assembler
  Block Number
    Block Size      0x200000
    Banks           0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11667

Monolith USB_77 45 3c 99 b3 1x1

Layout
  20-82-00515-5 14_2048_230 Xor C634 16_2
Mix
  Input
    Order  0
Assembler
  Sector Number Slow
    Sector Size  0x1000
Comments
  by Bolo
  Perfect Recovery !

  Mix:
  Block Pair 0xc00000, 0x4000
  Block Pair 0x471000000, 0x8000

Monolith USB_77 45 4c a8 92 1x1

Layout
  SM3259_41 1142_31 Xor 17fe_258 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  1
Assembler
  Block Number
    Block Size   0x204000
    Banks        0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11729

  Split by Block
    Block 0x244800
    Parts 4

  Create folder 0,1,2,3
    Put each dump in the appropriate directory
    Rename to 01_01.dump
    Copy FE folder in each folder

  Each folder can have different SM3259_41 layout
  With different sector size

  For each folder
    ECC Fix
    ECC = Off
    Check that arrow button looks right "->" and have blue color
    Save Image

  Take 4 created Images
    Join by Page 0x2000

  File tree is OK
  90% of files is OK

Monolith USB_78 ad d7 94 da 1x1

Layout
  SM3254 1066 v3 Xor 0006 64
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size      0x400000
    Banks           00 / 0x000 / 0x0ff
                    01 / 0x000 / 0x0ff
                    02 / 0x000 / 0x05b
                    03 / 0x000 / 0x04d
  Actions
    Scan
Comments
 Use Auto Conflicts
 by Bolo

Monolith USB_79 ad 5e 28 22 1x1

Layout
  SM3281_BN 32_1144 Xor 17fe_bb
Mix
  Input
    Order  0
  Block Pair
    Block  0xd80000
    Page   0x2000
  Block Pair
    Block  0x1b00000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x3600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x4f7
  Actions
    Scan
Comments
  Serg for forum 11776

Monolith USB_80 45 de 94 93 1x1

Layout
  DM 1105_1101 Xor 9b01_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 11747

Monolith USB_81 45 3c 98 b3 1x1

Layout
  SM3257_41 1144_27 Xor 17fe_768_512
Mix
  Input
    Order  0
  Block Pair
    Block  0xc00000
    Page   0x4000
Assembler
  Block Number
    Block Size      0x1800000
    Banks           00..04 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  by Arvika

Monolith USB_82 ad de 94 eb 1x1

Layout
  CBM2093 1103 Xor cf7e_64
Mix
  Input
    Order  0
  Block Pair
    Block  0x400000
    Page   0x4000
Assembler
  Translator Table
    Block Size   0x800000
    Image Cut    0x102000
  Actions
    Scan
Comments
  Serg for forum

  Need find translator table manualy

  Can start from Virtual Translator

Monolith USB_83 89 a4 64 32 1x1

Layout
  AU6989 1152 Xor 6771_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x2000000
    Page   0x4000
  Cross Bank
    Block  0x2000000
    Bank   0x200
Assembler
  Block Number
    Block Size   0x2000000
    Bank Space   0x200
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 11885

Monolith USB_84 ad 5c 28 2a 1x1

Layout
  SM3281_BN 32_1144 Xor 17fe_bb
Mix
  Input
    Order  0
  Block Pair
    Block  0xd80000
    Page   0x2000
  Block Pair
    Block  0x1b00000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x3600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x265
  Actions
    Scan
Comments
  by Arvika
  check conflicts

Monolith USB_85 45 3a 94 93 1x1

Layout
  AU6983 1104 Xor 0b99_256 Ref
Mix
  Input
    Order  0
  Block Cut
    Block  0/0x8000/0x3F8000
  Cross Bank
    Block  0x3f8000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x3f8000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 11893

Monolith USB_86 ad 3a 18 a3 1x1

Layout
  SM3259_41 1146_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  1
Assembler
  Block Number
    Block Size   0x408000
    Banks        0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11932

  Split by Block 0x48b040

  Create folder Split_0, Split_1
  Put new dumps in this folders
  Copy FE folder here

  for Split_0 layout
  SM3259_41 1146_31 Xor 17fe_256 bb

  for Split_1 layout
  SM3259_41 1140_31 Xor 17fe_256 bb

  Make Join by Page 0x4000 for created images
  This will be final image

Monolith USB_87 ec 3a 94 43 1x1

Layout
  AU6998 1110 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x4b0000
    Bank   0x6e3
Assembler
  Block Number
    Block Size   0x4b0000
    Bank Space   0x6e3
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 11921

Monolith USB_88 45 49 9b b3 1x1

Layout
  20-82-00515-5 14_2048_230 Xor C634 16_2
Mix
  Input
    Order  0
Assembler
  Sector Number Slow
    Sector Size  0x1000
Comments
  Serg for forum 11904

Monolith USB_89 45 3a 94 93 1x1 ref

Layout
  SM3259 1098_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  128
    Group  1
  Block Cut
    Block  0/0x4000/0x4000/0x4000/0x3F4000
Assembler
  Block Number
    Block Size      0x3f8000
    Banks           0..7 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 11965

Monolith USB_90 45 3e 98 b3 1x1

Layout
  SM3259_41 1140_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  96
    Group  1
  Block Cut
    Block  0x1200000/0x600000
Assembler
  Block Number
    Block Size   0x1200000
    Banks        00..16 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  By JeremyB
  SBB: Auto FF, there is was FF is SA
  RR:  SanDisk v1 and v3 work, ID changes frequently.
  NR:  Even though ID changes read is still good

Monolith USB_91 ec 1e 98 bf 2x1

Layout
  SM3280 32_1146_2_32 LE2 LE2 Xor 17fe_1104 SA
Mix
  Input
    Order  0/1
  Join by Dump
    Parts  2
Assembler
  Sector Number Slow
    Sector Size     0x1000
  Actions
    Scan
Comments
  by Bolo

Monolith USB_92 ec de 98 ce 1x4

Layout
  SM3257 1148_27 Xor b36e_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size      0xc00000
    Banks           0..9 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 12176

Monolith USB_93 98 3a a8 92 1x2

Layout
  PS2251 1138_1134 Xor 0561_86
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Block Number
    Block Size      0x1020000
    Bank Space      0x4000
    Banks           00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Perfect recovery
  by Bolo

Monolith USB_94 45 3a a4 93 1x1

Layout
  SM3259 1104_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  256
    Group  1
Assembler
  Block Number
    Block Size   0x400000
    Banks        0..15 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 12199

  Split by Block 4, 0x45D000

  Put received dumps in folders Split_0, Split_1, Split_2, Spli_3

  Put FE folder with Chip.txt in each created folder

  In each folder need use different layout
  With different sector size

  ECC Fix
  ECC Off
  Save Image_0, Image_1, Image_2, Image_3

  Use Combine_27 from downloads // Other
  to combine images to single Final.image

Monolith USB_95 ec d5 14 b6 2x1

Layout
  UT163 528 1001_1001
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x80000
    Page   0x1000
  Divide
    Field  Block Number
    Value  0x2
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x100000
    Bank Space   0x100
    Image Cut    0x200
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 12202

Monolith USB_96 45 3c 98 b3 1x1

Layout
  SM3259_41 1140_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  768
    Group  1
Assembler
  Block Number
    Block Size   0xc00000
    Banks        00..04 / 0x000 / 0x0ff
Comments
  by Arvika
  ID: 45 3c 98 b3 76 72
  SBB: Auto ff
  Split by Block 0xd6e000
  Create folder Split_0, Split_1
  Put new dumps in this folders
  Copy FE folder here
  for Split_0 layout
  SM3259_41 1140_31 Xor 17fe_256 bb
  for Split_1 layout
  SM3259_41 1144_31 Xor 17fe_256 bb
  For each folder
    ECC Fix
    ECC = Off
    Save Image
  Make Join by Page 0x4000 for created images
  This will be final image

Monolith USB_96 45 48 99 b3 1x1

Layout
  20-82-00515-5 14_2048_230 Xor C634 16_2
Mix
  Input
    Order  0
Assembler
  Sector Number Slow
    Sector Size     0x1000
Comments
  by Arvika
  ID: 45 48 99 b3 7a 6b
  ECC fix
  Scan with ECC=check

Monolith USB_97 ad 5e 28 22 1x1

Layout
  SM3259_41 1148_31 Xor 17fe_256
Mix
  Input
    Order  0
  Block Pair
    Block  0xd80000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x1b00000
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 12227

  There was little data

  But i think next time need make
  Split by Block 0x1F53000

  Save two images and make
  copy /b Disk_0.image + Disk_1.image FINAL.image

Monolith USB_98 45 3c 98 b3 1x1

Layout
  SM3259 602_31 Xor 17fe_256 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  256
    Group  1
  Block Cut
    Block  0x3c00/0x400
Assembler
  Block Number
    Block Size      0x3c0000
    Banks           00..32 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  by Arvika
  Dump was read with SLC mode, case use 30 sectors
  Split by Block 0x47a000
  Create folder Split_0, Split_1
  Put new dumps in this folders
  Copy FE folder here
  for Split_0 layout
  SM3259 602_31 Xor 17fe_256 bb
  for Split_1 layout
  SM3259 600_31 Xor 17fe_256 bb
  SBB: Auto ff + manual adjust
  For each folder
    ECC=on
    Save Image
  Need join both images with Combine_27
  This will be final image
  There was a lot of conflicts, need solve them manually

Monolith USB_99 ad 3a 18 03 1x1

Layout
  SM3257 1150_27 Xor 101d_256 v5
Mix
  Input
    Order  0
  Block Pair
    Block  0x600000
    Page   0x4000
  Cut Bits
    Field  Bank Number
    Mask   0xc0
Assembler
  Block Number
    Block Size      0xc00000
    Banks           0..5 / 0x000 / 0x0ff
  Actions
    Scan
Comments
  Serg for forum 12275

上一篇：USB part 3
下一篇：USB part 5

站内搜索

联系我们
