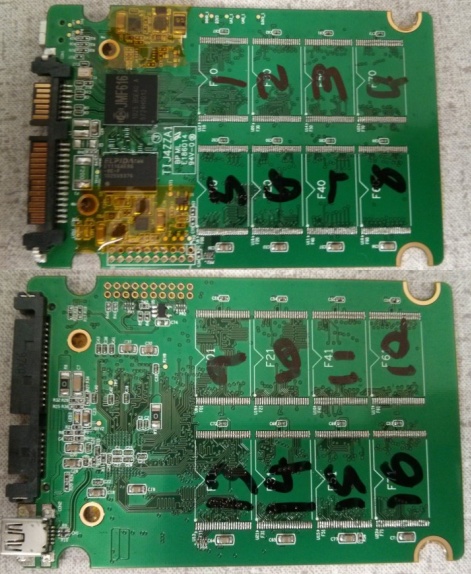

Layout
  JMF616 1070 Xor 6771_1
Mix
  Input
    Order  4/0/5/1/6/2/7/3/8/12/9/13/10/14/11/15
  Block Pair
    Block  0x100000
    Page   0x1000
  Join by Page
    Parts  16
    Page   0x200000
  Cross Block
    Field  Block Number
    Block  0x200000
    Parts  16
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x10000
    Banks        00 / 0x000 / 0x7fff

    Mix          8/0x1000
                 2/0x10000
  Actions
    Scan
Comments
  Serg for forum 7242

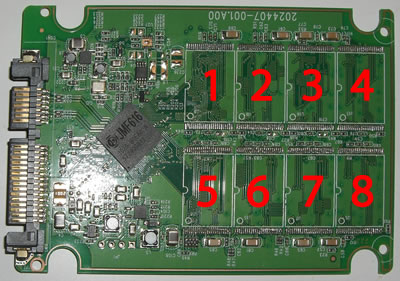

Layout
  JMF616 1070 Xor 6771_1
Mix
  Input
    Order  7/1/6/0/3/2/5/4
  Join by Page
    Parts  8
    Page   0x100000
  Cross Block
    Field  Block Number
    Block  0x100000
    Parts  16
Assembler
  Block Number
    Block Size   0x100000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3fff
    Mix          16/0x2000
    Scan Back    true
  Actions
    Scan
Comments
  by Vlad forum 4915
  many conflicts

JMF616   98 d7 94 32   8x2   Oedflash extractor   Layout JMF616 1070 Xor 6771_1 Mix Input Order 14/2/12/0/6/4/10/8/15/3/13/1/7/5/11/9 Join by Page Parts 8 Page 0x100000 Join by Page Parts 2 Page 0x1000000 Cross Block Field Block Number Block 0x100000 Parts 32 Assembler Block Number Block Size 0x100000 Bank Space 0x10000 Banks 00 / 0x000 / 0xffff Mix 32/0x2000 Actions Scan Comments by Vlad forum 4979 dumps had got many ECC errors

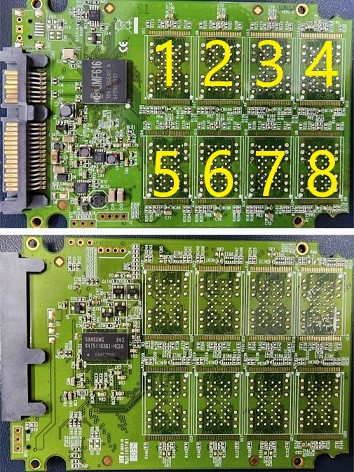

Layout
  JMF616 1070 Xor 6771_1
Mix
  Input
    Order  7/1/6/0/3/2/5/4/11/13/10/12/15/14/9/8
  Join by Page
    Parts  8
    Page   0x100000
  Join by Page
    Parts  2
    Page   0x1000000
  Cross Block
    Field  Block Number
    Block  0x100000
    Parts  32
Assembler
  Block Number
    Block Size  0x100000
    Bank Space  0x10000
    Banks
      0 / 0x000 / 0x10000
    Mix          32/0x2000
    Scan Back    true
  Actions
    Scan

Layout
  JMF616 1070 Xor 6771_1
Mix
  Input
    Order  14/2/12/0/6/4/10/8/15/3/13/1/7/5/11/9/22/26/20/24/30/28/18/16/23/27/2
1/25/31/29/19/17
  Join by Page
    Parts  8
    Page   0x100000
  Join by Page
    Parts  4
    Page   0x1000000
  Cross Block
    Field  Block Number
    Block  0x100000
    Parts  64
Assembler
  Block Number
    Block Size  0x100000
    Bank Space  0x400000
    Banks
      0 / 0x000 / 0x1ffff
    Mix          64/0x2000
    Scan Back    true
  Actions
    Scan

Layout
  JMF616 1070 Xor 6771_1
Mix
  Input
    Order  7/1/6/0/3/2/4/5
  Join by Page
    Parts  8
    Page   0x100000
  Cross Block
    Field  Block Number
    Block  0x100000
    Parts  16
    Step   1
Assembler
  Block Number
    Block Size   0x100000
    Bank Space   0x40000
    Banks        00 / 0x000 / 0x7fff
    Mix          16/0x2000
  Actions
    Scan
Comments
  Serg for forum 12657
