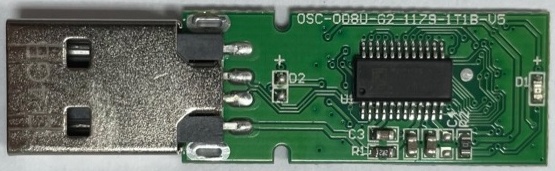

Layout
  FC1178 1154_1150
Mix
  Input
    Order  0
  Xor 21cd
    Page   0x4000
    Group  4
  Divide
    Field  Block Number
    Value  0x2ff
  Add
    Field  Block Number
    Value  0x30
  Block Cut
    Block  0x7B8000/0x4000/0x444000
Assembler
  Block Number
    Block Size   0xbfc000
    Bank Space   0x4000
    Image Cut    0x742000
    Banks        00 / 0x000 / 0x0f4
  Actions
    Scan
Comments
  For LBA pattern:

  Very cool controller

  Split by Block 4, 0xd9e000

  For each split make separate image
  Split order: 2,3,0,1

  Join by Dump

  In each split
  need cut pages
  Divide block number on (0x300 - number on cuted pages)

  Need add some value to Block Number
  And an Image Cut
  Start of each image is missing

  Have a fun :)

  I give up on split_3

FC1179   2c 44 44 4b   1x1   qpfflash extractor芯片数据恢复软件 oracle extractor数据库修复软件   Layout FC1179 1120_1116 Xor 3f43_128 Mix Input Order 0 Assembler Block Number Block Size 0x200000 Bank Space 0x4000 Image Cut 0x1f7000 Banks 00 / 0x000 / 0x7ff Actions Scan Comments Serg for forum 12018

FC1179   2c c4 08 32   1x1   qpfflash extractor芯片数据恢复软件 oracle extractor数据库修复软件   Layout FC1178 1150_1146 Mix Input Order 0 Xor 21cd Page 0x4000 Group 4 Divide Field Block Number Value 0x900 Cross Bank Block 0x4800000 Bank 0x1f8 Cross Bank Block 0x2400000 Bank 0x1f8 Assembler Block Number Block Size 0x2400000 Bank Space 0x1f8 Scan Max 1 Actions Scan Find Bank Size Comments by Serg & Arvika can not verify model, because there is no FAT dirs RAW recovery give good result

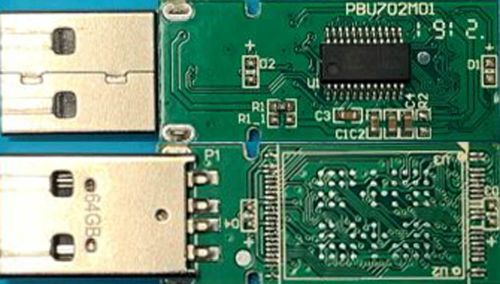

Layout
  FC1178 1148_1144
Mix
  Input
    Order  0
  Xor 21cd
    Page   0x4000
    Group  4
  Block Cut
    Block  0/0x30000/0xBA0000/0x30000
  Divide
    Field  Block Number
    Value  0x2e8
  Add
    Field  Block Number
    Value  0x11
Assembler
  Block Number
    Block Size   0xba0000
    Bank Space   0x4000
    Image Cut    0x5d6000
    Banks        00 / 0x000 / 0x9ff
  Actions
    Scan
Comments
  by Arvika
  ID: 45 3c 98 b3 76 72
  even blocks empty, odd with data
  save disk.image, scan by any software
  Check dirs ok
  Possible rebuild full structure after additional work
  Solution could be other if even and odd blocks have data

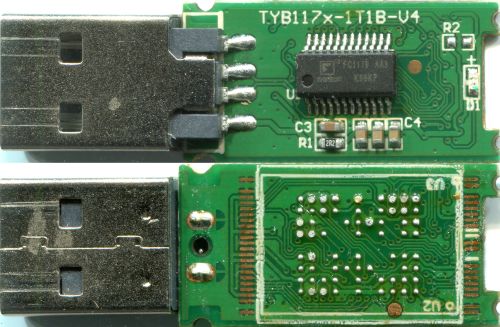

Layout
  FC1178 1148_1144 v2
Mix
  Input
    Order  0
  Xor 21cd
    Page   0x4000
    Group  4
  Divide
    Field  Block Number
    Value  0x2e4
  Add
    Field  Block Number
    Value  0x12
  Block Cut
    Block  0/0x38000/0xB90000/0x38000
Assembler
  Block Number
    Block Size   0xb90000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x9ff
  Actions
    Scan
Comments
  by Arvika
  ID: 45 3c 98 b3 76 72
  To use this model need cut bad bits (if exist)
  even blocks empty, odd with data
  save disk.image, scan by any software
  Check dirs ok
  Possible rebuild full structure after additional work
  Solution could be other if even and odd blocks have data

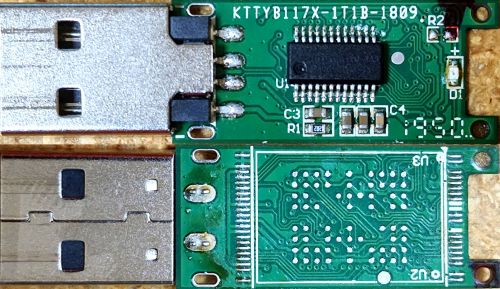

Layout
  FC1178 1148_1144
Mix
  Input
    Order  0
  Xor 21cd
    Page   0x4000
    Group  4
  Divide
    Field  Block Number
    Value  0x300
  Add
    Field  Block Number
    Value  0x62
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Image Cut    0x800000
    Banks        00 / 0x000 / 0x9ff
  Actions
    Scan
Comments
  by Arvika
  ID: 45 3c 98 b3 76 72
  To use this model need cut bad bits (if exist)
  save disk.image, scan by any software
  Check dirs ok
  Possible rebuild full structure after additional work

FC1179   45 3c 98 b3   1x1   v4   qpfflash extractor芯片数据恢复软件 oracle extractor数据库修复软件   Layout FC1178 1148_1144 Mix Input Order 0 Xor 21cd Page 0x4000 Group 4 Block Cut Block 0x1200000/0x600000 Block Cut Block 0xc000/0x4000/(0x8000/0x4000)*62/0x20000/0x4000/0x14000/0x4000/0x5c00 0/0x4000/(0x14000/0x4000)*6/(0x2C000/0x4000)*3/0x14000/0x4000/0x44000/0x4000/0x 5C000/0x4000/0x2C000/0x4000/0x8000/0x4000/0x20000/0x4000/0x14000/0x4000/0x8000/ 0x4000/0x128000/0x4000/(0x2C000/0x4000)*8/0x8000/0x14000/0x4000/0x8000/0x4000/0 x30000/0x900000 Divide Field Block Number Value 0x411 Add Field Block Number Value 0x3 Assembler Block Number Block Size 0x1044000 Bank Space 0x4000 Image Cut 0x800000 Banks 00 / 0x000 / 0x7ff Actions Scan Comments Arvika for forum 12771 ID: 45 3c 98 b3 76 6b To use this model need cut bad bits (if exist) save disk.image, scan by any software Possible rebuild structure after additional work Root damaged, check dirs ok Statistics: RAW scan after LBN assembly: 92% good photos RAW scan without assembly: 47% good photos

Layout
  FC1178 1154_1150 Xor e9e5_128
Mix
  Input
    Order  0
  Divide
    Field  Block Number
    Value  0x900
Assembler
  Block Number
    Block Size   0x2400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x777
  Actions
    Scan
Comments
  Serg for forum 12007

  Verified only with Raw Recovery

  11.04.2022 Divide changed

Layout
  FC1178 1148_1144
Mix
  Input
    Order  0
  Xor 21cd
    Page   0x4000
    Group  4
  Block Cut
    Block  0x11D0000/0x630000
  Divide
    Field  Block Number
    Value  0x8e8
  Cross Block
    Field  Block Number
    Block  0x11d0000
    Parts  2
    Step   1
Assembler
  Block Number
    Block Size   0x11d0000
    Bank Space   0x4000
    Mix          2 / 0x4000
    Scan Max     1
  Actions
    Scan
    Find Bank Size
Comments
  by Arvika & Serg
  Case use bad bits, first need remove them before use this model
  RAW recovery

FC1179   ad 5e 28 22   1x1   qpfflash extractor芯片数据恢复软件 oracle extractor数据库修复软件   Layout FC1178 1154_1150 Mix Input Order 0 Raw Cut Block 0xFA9800/0x2EFC800 Xor 21cd Page 0x2000 Group 4 Divide Field Block Number Value 0x6c0 Assembler Block Number Block Size 0xd80000 Bank Space 0x4000 Banks 00 / 0x000 / 0x4f8 Actions Scan Comments by Arvika Use RAW cut different for each plane Plane0 - 0xFA9800/0x2EFC800 Plane1 - 0/0xFA9800/0xFA9800/0x1F53000 Plane2 - 0/0x1F53000/0xFA9800/0xFA9800 Plane3 - 0/0x2EFC800/0xFA9800 Save each image as Disk0-3 Disk2, Disk3 - not used by controller for this case Join by dump Disk0, Disk1,Disk2,Disk3 Save as disk_final.image RAW scan for LBN assembly (without block cut) give 35% good photos To get better result need use different Divide and Block cut After additional work it is possible rebuild FS
