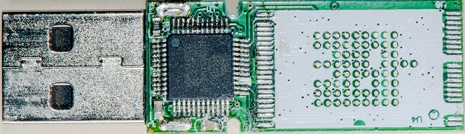

AU6989

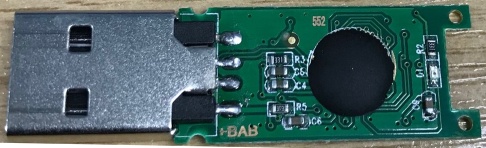

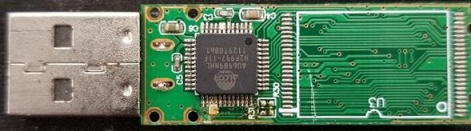

AU6989ANHL-G 45 d7 98 92 1x1

Layout
  AU6989 1146 Xor 6771_256_wl
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x400
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  by Arvika

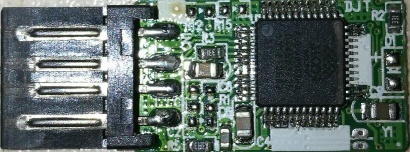

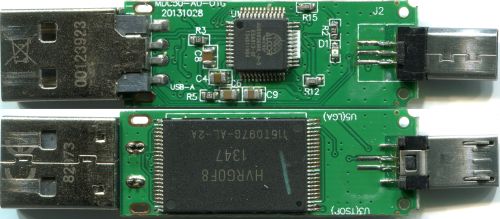

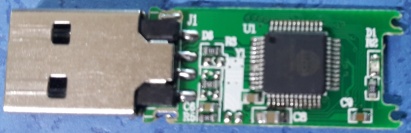

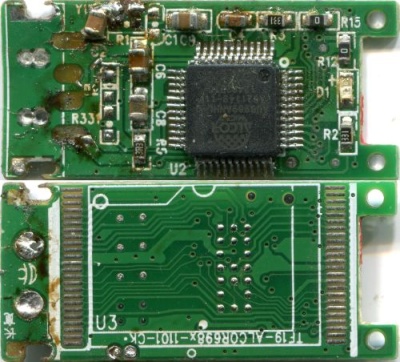

AU6989ANHL 45 de a4 82 2x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  1/0
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 11197

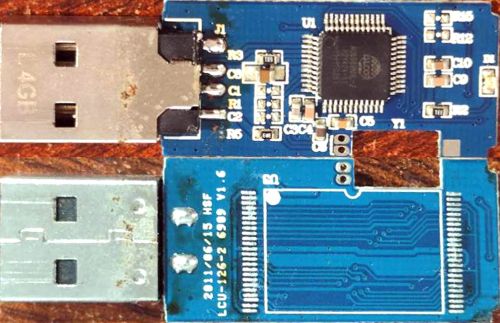

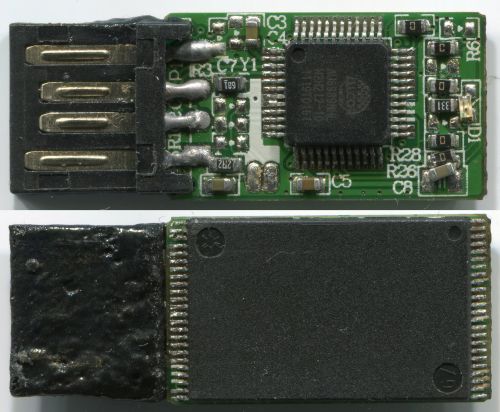

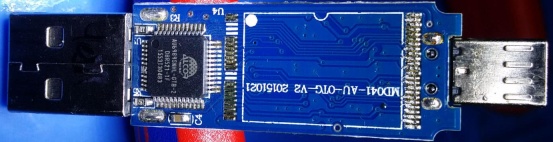

AU6989ANHL 98 de 94 93 2x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  1/0
  Cross Bank
    Block  0x400000
    Bank   0x400
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 9411

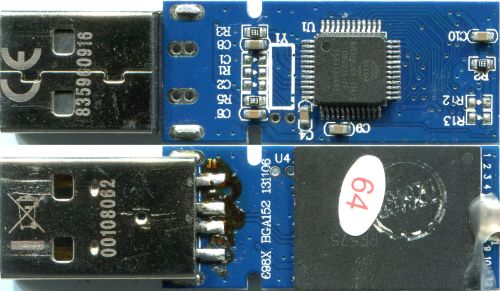

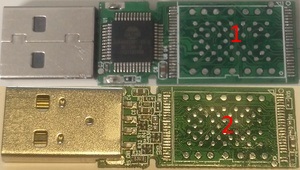

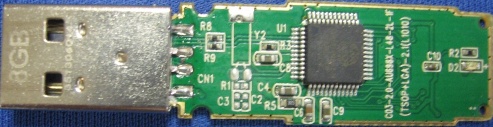

AU6989ANH 2c 88 08 5f 2x1

Layout
  AU6989 1146
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x300000
    Page   0x2000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x558
  Actions
    Scan
    Read Bank Size
Comments
  Try different Bank Spaces. 100% Recovered
  By JeremyB

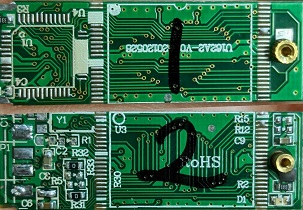

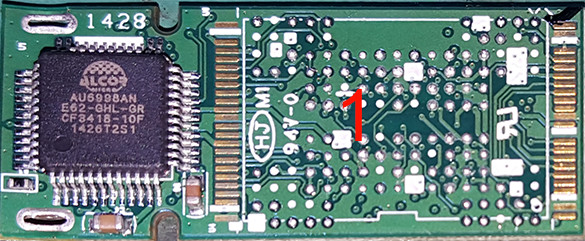

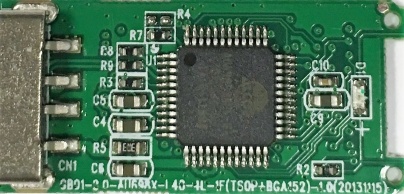

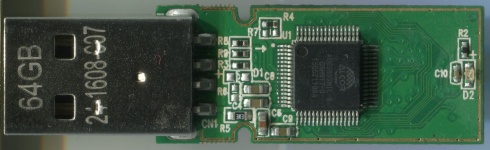

AU6989AN 2c 64 64 3c 2x1

Layout
  AU6998 1096
Mix
  Input
    Order  1/0
  Join by Dump
    Parts  2
  Cross Bank
    Block  0x800000
    Bank   0x200
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x200
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 8100

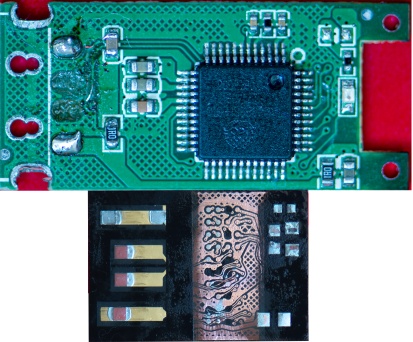

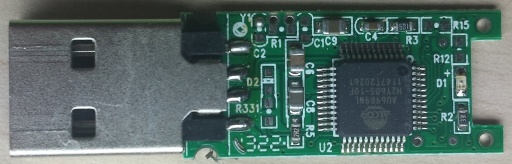

AU6989HL 2c 88 08 5f 1x1

Layout
  AU6989 1146
Mix
  Input
    Order  0
  Block Pair
    Block  0x300000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x557
  Actions
    Scan
Comments
  Serg for forum 8217

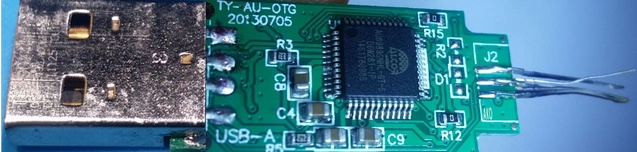

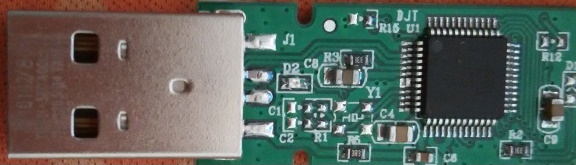

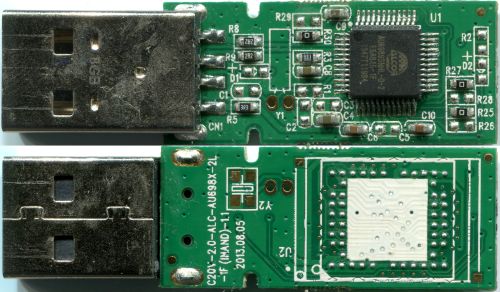

AU6989NHL-2 98 d7 98 b2 1x1

Layout
  AU6989 1146 Xor 6771_192
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  192
    Group  2
  Raw Cut
    Block  0x1B0000/0x1B0000
Assembler
  Block Number
    Block Size   0x180000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x4b7
  Actions
    Scan
Comments
  by Arvika
  SBB: Auto 2 Same Bytes + manual correction
  Save as 1.image
  Change RAW cut to 0/0x1B0000/0x1B0000 and
  Banks size by Find Bank Size
  Save as 2.image
  Join by dump 1.image + 2.image -> Final.image

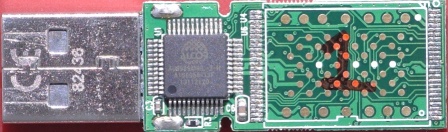

AU6989NHL 45 de 94 82 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  by Arvika

AU6989NHL 98 de 94 93 1x1 Cut

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x400000
    Bank   0x400
  Block Cut
    Block  0x3e0000/0x20000
Assembler
  Block Number
    Block Size   0x3e0000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 7619

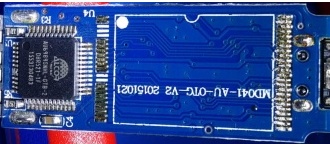

AU6989NHL 98 de 98 92 1x1

Layout
  AU6989 1152 Xor Xor 6771_258 v2
Mix
  Input
    Order  0
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 11687

AU6989NL ad d7 94 91 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x200000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8106

AU6989SN-GTB 45 de a8 92 1x1

Layout
  AU6998 1138 Xor 6771_516 aECC
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  4
  Block Pair
    Block  0x204000
    Page   0x2000
  Cross Bank
    Block  0x408000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x400
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 10434
  Software Bad Bytes
  Use Auto 2 Same Bytes method

AU6989SNBT-GT-2 89 84 64 3c 2x1

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  1/0
  Join by Dump
    Parts  2
  Cross Bank
    Block  0x800000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 10113

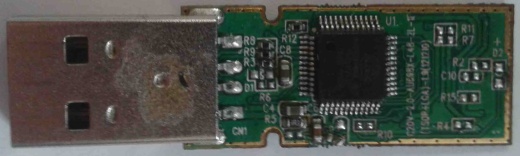

AU6989SNHL-2 45 de 98 92 1x1

Layout
  AU6989 1146 Xor 6771_258 56-1 BP
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  2
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  SBB: Auto 2 Same Bytes + manual correction

AU6989SNHL-5 45 de 94 83 1x1

Layout
  AU6983 1104 Xor 6771_128
Mix
  Input
    Order  0
  Cross Bank
    Block  0x200000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for order 1131

AU6989SNHL-5 ec d7 98 ce 1x1

Layout
  AU6989 1152 Xor 6771_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x180000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
    Find Bank Size
Comments
  by Arvika
  check conflicts

AU6989SNHL-G-1 45 3a a5 82 1x2

Layout
  AU6983 1104 Xor 6771_256 d2
Mix
  Input
    Order  0/1
  Cross Bank
    Block  0x200000
    Bank   0x800
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 9052

AU6989SNHL-G-2 45 3e a7 82 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  By Serg

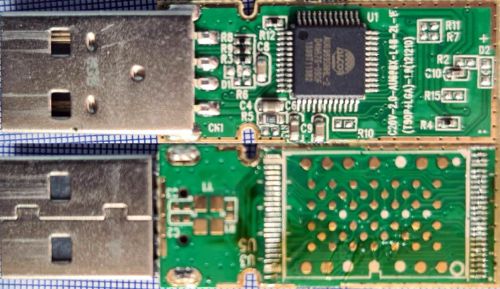

AU6989SNHL-G-2 45 de 84 93 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  eMMC chip, need read it as monolith
  check conflicts

AU6989SNHL-G-5 98 de 94 93 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x400000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  check conflicts

AU6989SNHL-G-7 89 64 64 3c 1x2

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0/1
  Cross Bank
    Block  0x800000
    Bank   0x200
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x200
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8542

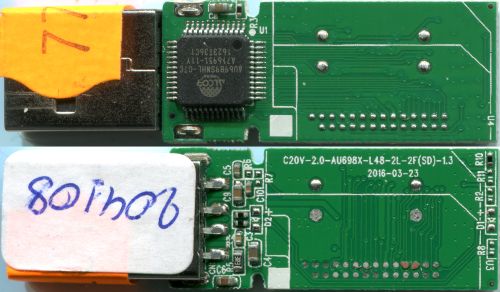

AU6989SNHL-GT-1 45 de 94 93 1x1

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  256
    Group  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  Software Bad Bytes
  Use Auto 2 Same Bytes method
  Check conflicts

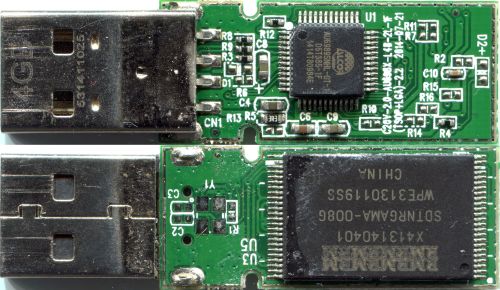

AU6989SNHL-GT-5 45 4c a8 92 1x1

Layout
  AU6998 1138 Xor 6771_516 aECC
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  2
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff
  Actions
    Scan
Comments
  Serg for forum 11281

AU6989SNHL-GTB-2 2c a4 e5 54 1x2

Layout
  AU6998 1138 Xor 6771_256
Mix
  Input
    Order  0/1
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
Comments
  by Arvika
  check conflicts
  Run Check Dirs to little correct Banks size

AU6989SNHL-GTB-2 45 3a 94 93 1x1

Layout
  AU6998 1096 Xor 0b99_256 Ref
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  256
    Group  2
  Block Cut
    Block  0/0x8000/0x3F8000
  Cross Bank
    Block  0x3f8000
    Bank   0x840
Assembler
  Block Number
    Block Size   0x3f8000
    Bank Space   0x840
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 11047, 11526

AU6989SNHL-GTC 45 4c 95 93 1x1

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
Comments
  by Arvika
  check conflicts

AU6989SNHL 2c 64 44 4b 1x1

Layout
  AU6983 1104 Xor 6771_256 Cut x2 v2
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  256
    Group  2
  Block Cut
    Block  0xC000/0x4000/(0x4000/0x4000)*0x3D/0x8000
  Cross Bank
    Block  0x108000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x108000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 10742

AU6989SNHL 45 4c a8 a2 2x1

Layout
  AU6998 1138 Xor 6771_384_256 BP +0x2000 aECC
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x300000
    Page   0x2000
  Block Pair
    Block  0x600000
    Page   0x4000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x5a5
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 11274

AU6989SNHL 89 88 24 4b 1x1

Layout
  AU6990 1070 Xor 6771_256_SA
Mix
  Input
    Order  0
  Cross Bank
    Block  0x200000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x800
    Image Cut    0xfec00
    Banks        00 / 0x000 / 0x7ff
                 01 / 0x000 / 0x7ff
  Actions
    Scan
Comments
    By Arvika
    FAT32 must be rebuild manually

AU6989SNHL 98 3a a8 92 1x1

Layout
  AU6998 1138 Xor 6771_258_86 BP aECC
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  4
  Block Pair
    Block  0x204000
    Page   0x2000
  Cross Bank
    Block  0x408000
    Bank   0x826
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x826
  Actions
    Scan
    Find Bank Size
Comments
  By Serg

  SW BB - Auto 2 same bytes

AU6989SNHL 98 de 94 93 1x1

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  128
    Group  1
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x1ff
  Actions
    Scan
Comments
  Serg for forum 10783
  Not sure about Banks size
  It not match with number of blocks in dump
  Software Bad Bytes mode - Auto two Same

AU6989SNIL-G 89 84 64 3c 1x4

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0/1/2/3
  Software Bad Bytes
    Block  512
    Group  2
  Cross Bank
    Block  0x800000
    Bank   0x400
  Join by Dump
    Parts  4
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x400
  Actions
    Scan
Comments
  Serg for forum 11362
  To find bb use: Auto 2 Same Bytes

AU6989SN 2c 88 08 5f 1x1

Layout
  AU6989 1146
Mix
  Input
    Order  0
  Cross Bank
    Block  0x300000
    Bank   0x558
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x558
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 10509

AU6989 2c 88 08 5f 1x1

Layout
  AU6998 1138
Mix
  Input
    Order  0
  Cross Bank
    Block  0x300000
    Bank   0x558
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x558
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 9165

AU6989 45 de 88 a3 1x1

Layout
  AU6989 1146 Xor 6771_128 aECC
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x4ff
  Actions
    Scan
Comments
  Serg for forum 10975

AU6989 45 de a4 82 1x1

Layout
  AU6983 1104 Xor 6771_256 Cut x2
Mix
  Input
    Order  0
  Block Cut
    Block  0x8000/0x4000/(0x4000/0x4000)*61/0x4000/0x8000
Assembler
  Block Number
    Block Size   0x100000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 9295

AU6989 98 de 98 92 1x1

Layout
  AU6989 1146 Xor 6771_256_wl
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x4000
  Actions
    Scan
    Find Bank Size
Comments
  by Abdulkadir Ozdemir
  Perfect Recovery

AU6989 98 de a4 82 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
Comments
    By Arvika
    check conflicts
    Bank Size need correction after Check Dirs

AU6989 ad de 94 eb 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x400000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  by Serg

AU6989 ec d7 94 7e 1x1

Layout
  AU6989 1152 Xor 6771_128
Mix
  Input
    Order  0
  Cross Bank
    Block  0x100000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x100000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 10021
